304706 - Toledo Timing Tool Kit - Ford & Mazda

Tools
  • Suitable for popular Ford and Mazda 1.4L – 2.5L DOHC petrol and 1.6L – 2.0L diesel engine applications
  • For the locking of the camshaft, crankshaft and tensioners during the removal and installation of the engine timing belt or chain along with other engine servicing and repairs

ATTRIBUTES

Fuel TypePetrol & Diesel
SuitsCitroen
C4 (Diesel) 1.6L 2006 - 2011

Ford:
Fiesta (WP - WS) 1.4L - 2.0L 2004 - 2010
Fiesta (WS - WT) 1.6L (Diesel) 2009 - 2012
Focus (LR - LW) 1.6L - 2.0L 2000 - 2012
Mondeo (HA - MC) 2.0L, 2.3L 1995 - 2012

Honda:
Integra 1.8L (B18) 1993 - 2001

Mazda:
CX-7 2.3L (MZR) 2006 - 2009
Mazda 2 1.5L (ZY) 2007 - 2012
Mazda 3 2.0L, 2.3L 2004 - 2012
Mazda 6 2.0L - 2.5L 2002 - 2012
MX5 2.0L (MZR) 2005 - 2012
Tribute 2.3L (L3) 2004 - 2008

Volvo:
C30 (TDi) 1.6L (D4164T) 2010 - 2012
C30, S40, V50 (TDi) 2.0L (D4204T) 2009 - 2010

*Abbreviated list only, for complete vehicle application listings please use the Tridon Part Finder

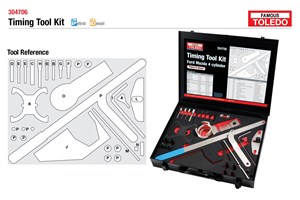

ITEM CONTENTS

NameQty
A - Chain Tensioner Locking Pin1
B - Locking Pin1
C - Crankshaft Locking Pin1
D - Camshaft Locking Pin1
E - Camshaft Timing Pins1
F - Crankshaft Alignment Pin1
G - Camshaft Timing Pin1
H - Crankshaft Timing Pin1
I - Flywheel Timing Pin1
J - Camshaft Alignment Tool1
K - Camshaft Sprocket Locking Tool1
L - Flywheel Locking Tool1
M - Camshaft Setting Bar1
N - Flywheel Locking Tool Adaptors1
O - Crankshaft Pulley Holding Tool1
P - Universal Sprocket Holding Tool1
